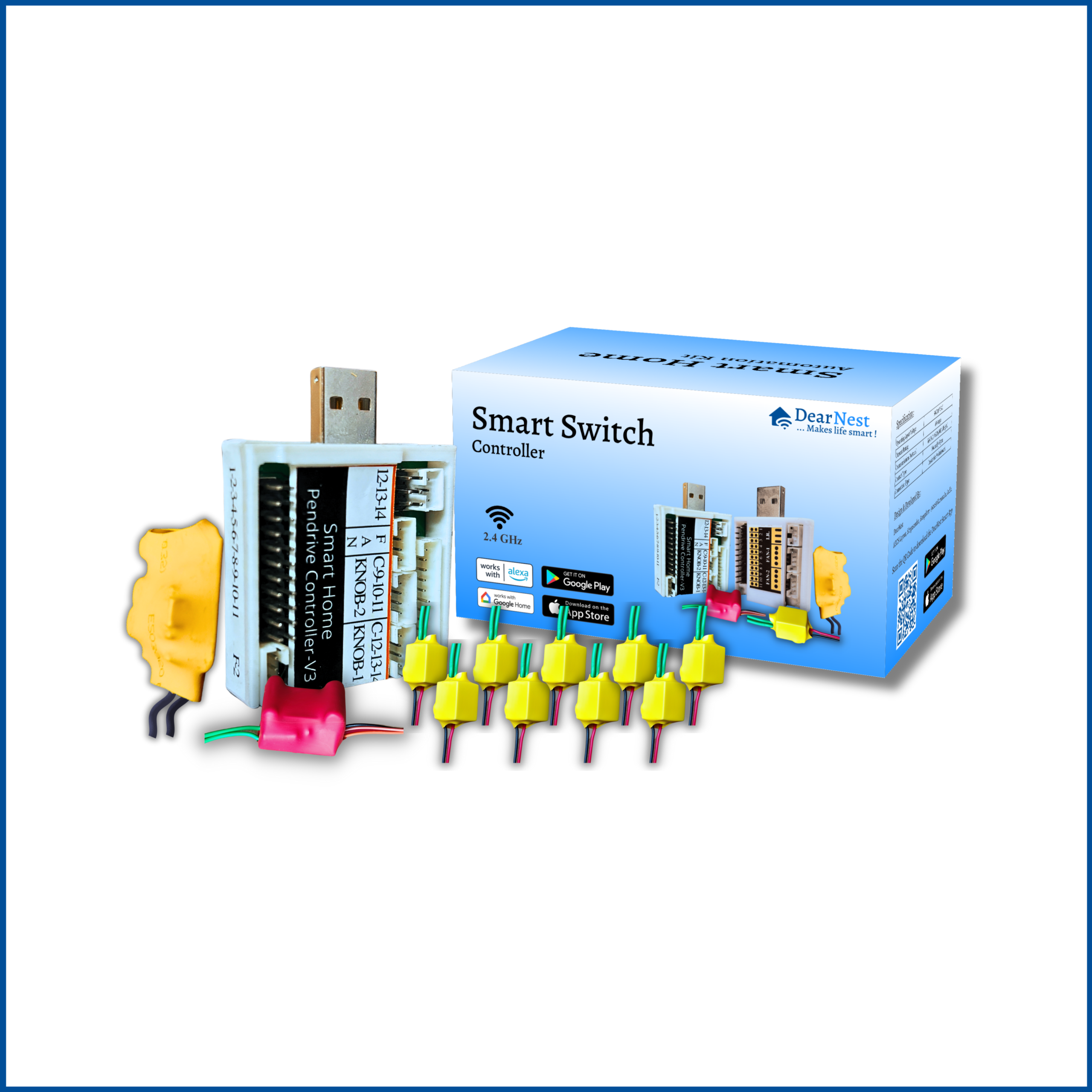

8 Switch Control Module is our retrofit solution, a smart device designed to upgrade traditional switch(s) and other switch-operated appliance(s) into smart switch without requiring extensive rewiring or replacing existing fixtures.
This device allows remote control, automation, and integration with smart home or commercial ecosystems.
This smart switch device is engineered to fits behind your existing switch board, making it compatible with standard wiring setups. It is designed to replace conventional switches, utilizing the current electrical infrastructure.
This advance technology allows users to control various heavy load electrical appliances in a home or commercial space.
Physical Design & Installation
This device is designed to fit behind switch board to make easy to convert tradition switches to smart switches and can be installed with existing wiring setup.
Technical Specification
- Operating Input Voltage: 100-240V AC, 50/60Hz
- Maximum Load Current (In each channel): 7 Amps
- Operating Temperature: 0°C to 50°C
- Operating Humidity: 10% to 90% RH, non-condensing
- Contact Type: Normally Open
- Connection Type: Inside the switch board
- Communication Protocol: Wi-Fi (802.11 b/g/n) & BLE
- Security: TLS, Certificate bases authentication with server
- Number Of Channels: 8 Nos.
Features
Works Remotely: The device works remotely with the DearNest Mobile application and it can be controlled from anywhere in the world. The user can control the appliance connected to it from anywhere.
Wireless Connectivity: Equipped with Wi-Fi. This smart retrofit switch connects to a Wi-Fi, enabling remote access via DearNest app or voice assistants like Alexa, Google Assistant.
Voice Control: Compatible with popular voice assistants like Alexa and Google assistant, the smart switch allows users to control their devices with simple voice commands, enhancing convenience and accessibility.
User-Friendly Installation: Designed for easy installation by users, with clear instructions and often without the need for professional assistance.
Compatibility: Compatible with various types of lighting fixtures (incandescent, LED, CFL, Fan etc.) and other electrical appliances, ensuring wide usability.
Firmware Updates: Supports over-the-air (OTA) firmware updates, ensuring the device stays up-to-date with the latest features and security patches.
Scheduling: User can schedule any individual load connected to the devices i.e. lights, bulbs, fans, etc. to turn on/off at a specific time. Once the schedule is set the device will follow the instructions at that specific time. User can also repeat the schedules to make it work throughout the week and at any point in time.
Add Family Members: The prime user of the mobile application can add multiple family members in the app so that all the members of the family have complete access to all the devices present in their home.
Scenes: The user can also create a scene to make specific adjustments to the devices and with a single tap of a button the scene will be executed. For example, you can create Party Scene where you can switch on AC, turn on TV and switch off the lights.
User Interface
App Control: Compatible with our “Things Alive” iOS and “DearNest” Android apps that allow customization, control, and monitoring of the smart switch functions.
Voice Control: Integration with voice assistants like Amazon Alexa & Google Assistant for hands-free operation.
Remote Control: Compatible with DearNest Remote.
Product Warranty
This product comes with one year of standard brand manufacturing warranty from the date of purchase. Click here to know about warranty coverage policy & claim procedure.
